Artificial Neural Networks Implementation for Dummy's

Artificial Neural Networks (ANNs) might sound intimidating, but they're not as complicated as they seem. It's inspired by the human brain, ANNs form the backbone of artificial intelligence, enabling machines to "think" and make decisions.

In this blog, we'll break down the concepts, guide you through a hands-on implementation, and equip you with the basics to dive deeper into the world of AI.

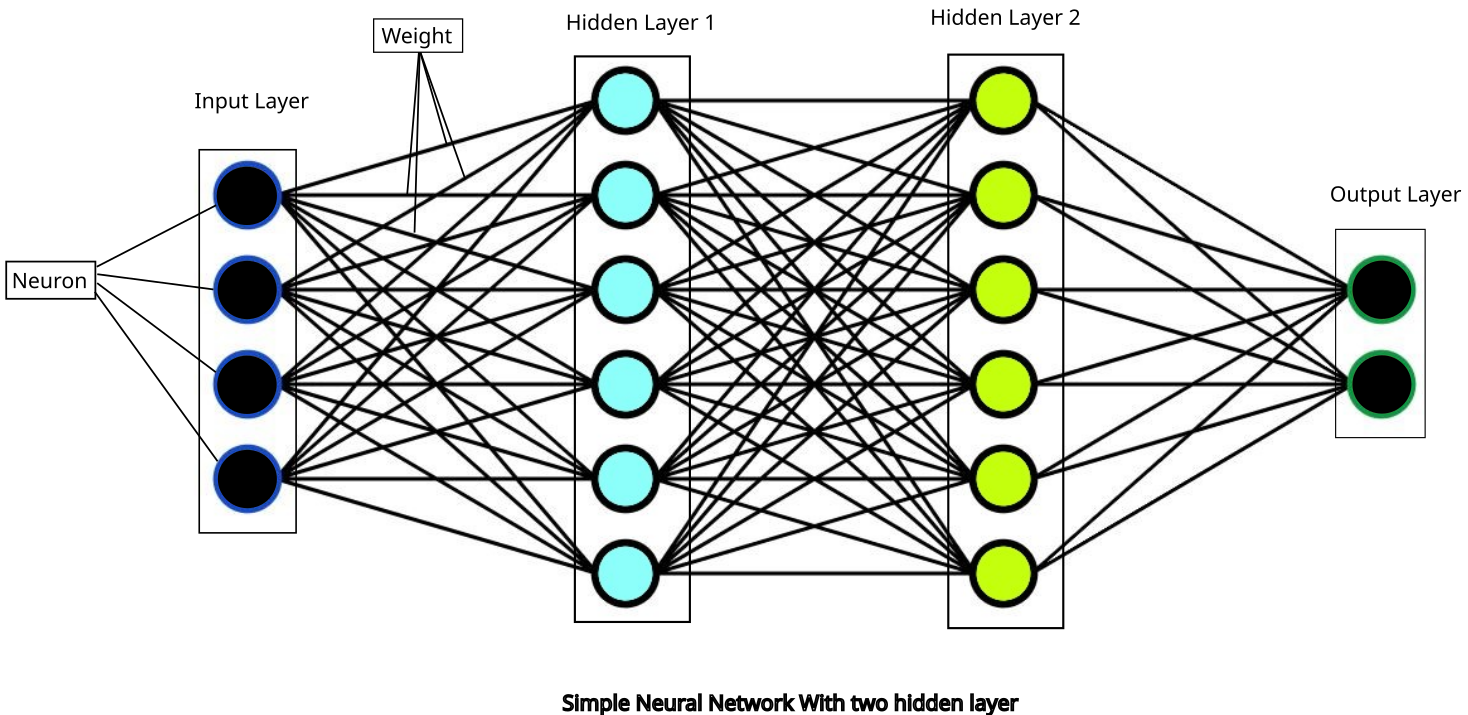

An artificial neural network is a computational model designed to mimic the way human brains process information. It consists of layers of interconnected nodes (neurons) that work together to analyze data, learn patterns, and make predictions.

Key Components of ANNs:

• Neurons/Perceptron: The basic processing units.
• Layers: Combination of multiple neurons, where the data is processed, and decisions are made.
• Weights and Biases: Numbers that the network adjusts to learn patterns.
• Activation Functions: Mathematical functions that decide whether a neuron should be activated.

Neural networks learn from data. They process inputs, make predictions, compare those predictions to actual results, and adjust their internal parameters to improve accuracy.

This process is known as training and involves:

1. Forward Propagation: Passing data through the network to generate predictions.
2. Calculating Loss: Measuring how far the predictions are from the actual values.
3. Backpropagation: Adjusting weights and biases to minimize loss.

Neural networks power technologies you use every day, like:

• Voice assistants (e.g., Siri, Alexa).
• Image recognition (e.g., face detection in photos).
• Recommendation systems (e.g., Netflix, Amazon).

By learning how to implement a neural network, you're stepping into the exciting world of artificial intelligence!

Step 1: Setting Up the Environment

Install Python and the required libraries:

pip install numpy tensorflow matplotlib

Step 2: Preparing the Dataset

We'll use the MNIST dataset of handwritten digits.

from tensorflow.keras.datasets import mnist

# Load the data
(x_train, y_train), (x_test, y_test) = mnist.load_data()

# Normalize the data
x_train, x_test = x_train / 255.0, x_test / 255.0

Step 3: Building the Network

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense, Flatten

# Define the model
model = Sequential([
    Flatten(input_shape=(28, 28)),
    Dense(128, activation='relu'),
    Dense(10, activation='softmax')
])

# Compile the model
model.compile(optimizer='adam',
              loss='sparse_categorical_crossentropy',
              metrics=['accuracy'])

Step 4: Training the Model

model.fit(x_train, y_train, epochs=5, validation_data=(x_test, y_test))

Step 5: Evaluating the Model

loss, accuracy = model.evaluate(x_test, y_test)
print(f"Test Accuracy: {accuracy}")

• Overfitting: Use techniques like dropout or data augmentation to prevent overfitting.
• Vanishing Gradients: Use activation functions like ReLU to avoid this issue.
• Choosing the Right Parameters: Experiment with different architectures and settings to find what works best.

• Healthcare: Detecting diseases from medical images.
• Finance: Predicting stock market trends.
• Gaming: Building intelligent opponents and improving gameplay.

• TensorFlow Documentation
• Andrew Ng’s Coursera Course on Machine Learning
• Community forums like Stack Overflow and Reddit’s r/MachineLearning

Congratulations! You’ve just implemented a basic neural network and learned the fundamental concepts. While this is only the beginning, you’re now equipped to explore the fascinating world of artificial intelligence.
